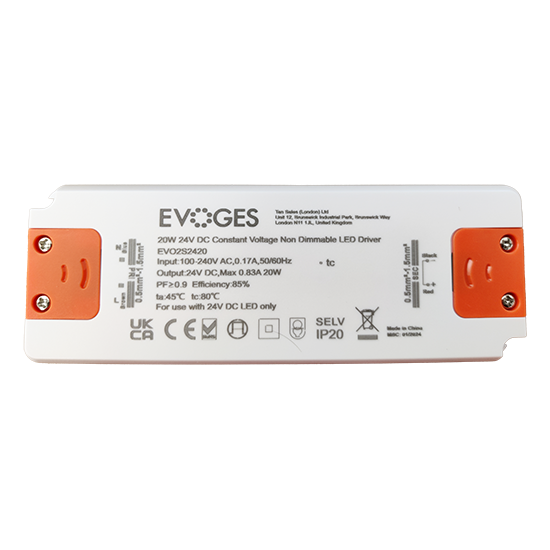

Picture of 20W 24V DC Constant Voltage Non-Dimmable LED Driver
Picture of 20W 24V DC Constant Voltage Non-Dimmable LED Driver

20W 24V DC Constant Voltage Non-Dimmable LED Driver

Product Code : EVO2S2420

246 in Stock

£12.00 INC VAT

Features:

  • Input Voltage: 100-240V AC
  • Power: 20W
  • Output Voltage: 24V DC
  • Output Current: 0.83A
  • Size (L*W*Hmm) 128*50*15mm
  • High Efficiency: up to 86%; PF>0.9
  • IP20 Design; Flicker-Free
  • Cooling by free air convection
  • Suitable for dry location use only
  • Protection: Short Circuit/ Over Loading/ Over Current/ Over Temperature
  • Safety Standards: EN61347-1, EN1347-2-13
  • 3 Years Warranty

Specifications

Power (W)20W
Input Voltage100-240V AC
Working Humidity20～90%RH, non-condensing
OutputOutput Voltage: 24V DC
Output Current0.83A
Dimensions(LxWxH): 128x50x15mm
Working Temperature-40～+60℃
