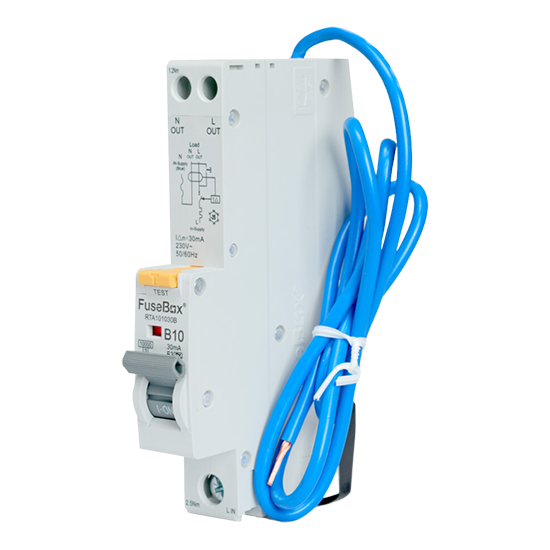

Picture of RTA101030B 10A B Curve RCBO 30mA Type A
Picture of RTA101030B 10A B Curve RCBO 30mA Type A

RTA101030B 10A B Curve RCBO 30mA Type A

Product Code : RTA101030B

23 in Stock

£23.40 INC VAT

Features:

  • Current Rating: 10A
  • Tripping Curve: B Curve (trips between 3–5 times the rated current)
  • Residual Operating Current: 30mA
  • Type: Type A (sensitive to AC and pulsating DC residual currents)
  • Breaking Capacity: 10kA
  • Poles: Single Pole with Switched Neutral (1P+N)
  • Mounting: DIN rail compatible
  • Standards Compliance: BS EN 61009-1

Specifications

Current Rating10A
Mounting35mm DIN rail
TypeType A (sensitive to AC and pulsating DC residual currents up to 6mA)
Voltage230V 50/60Hz
Number Of Poles1P + N (single pole with switched neutral)
